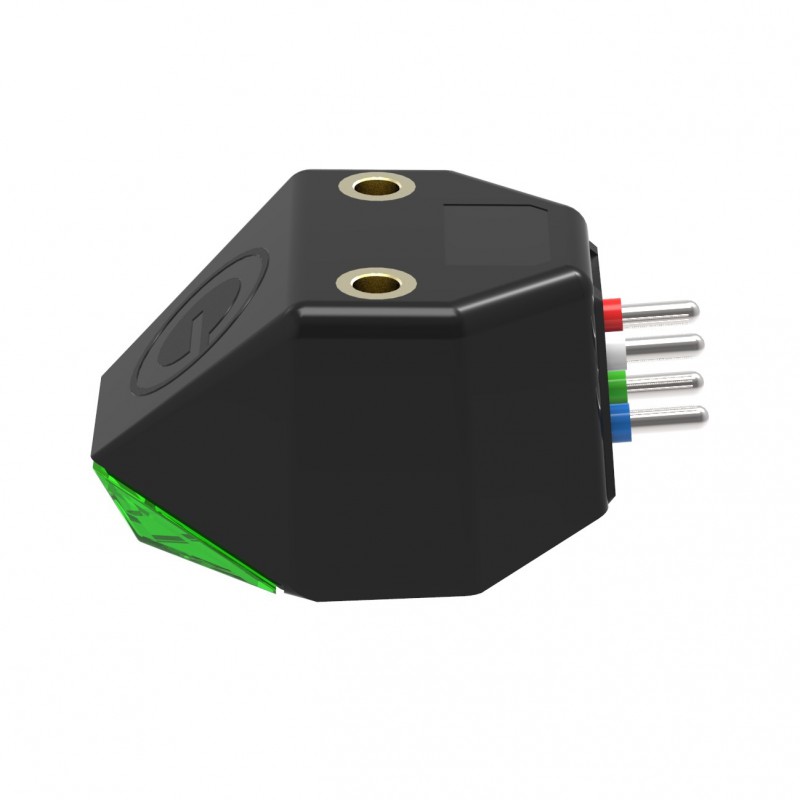

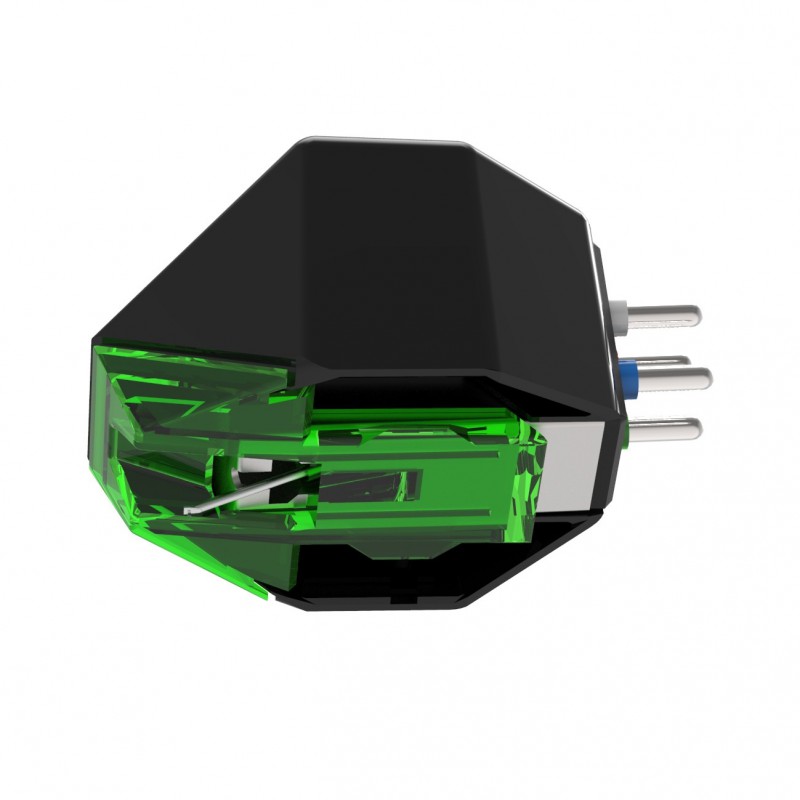

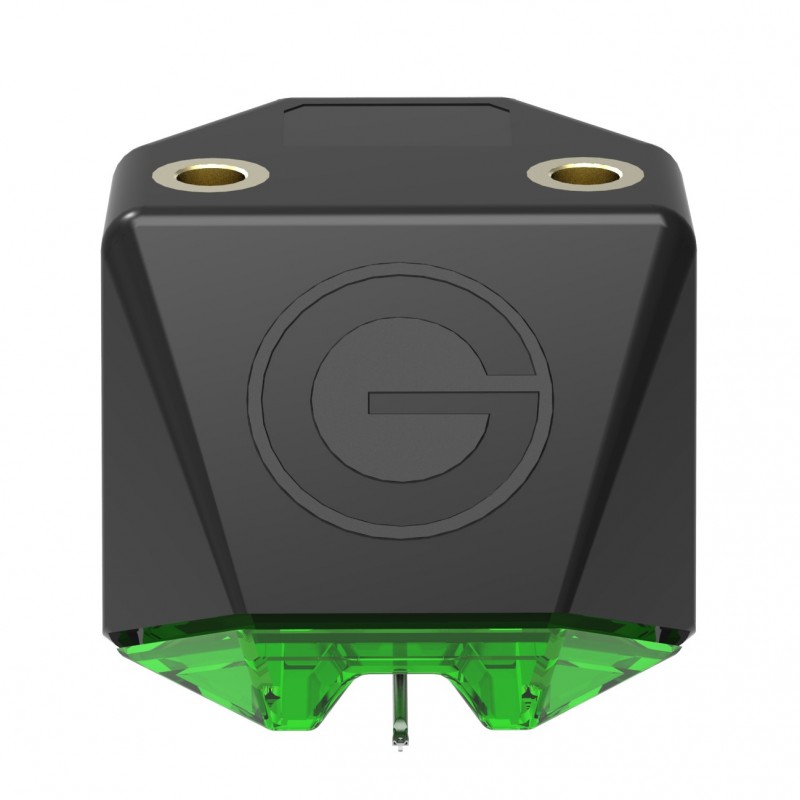

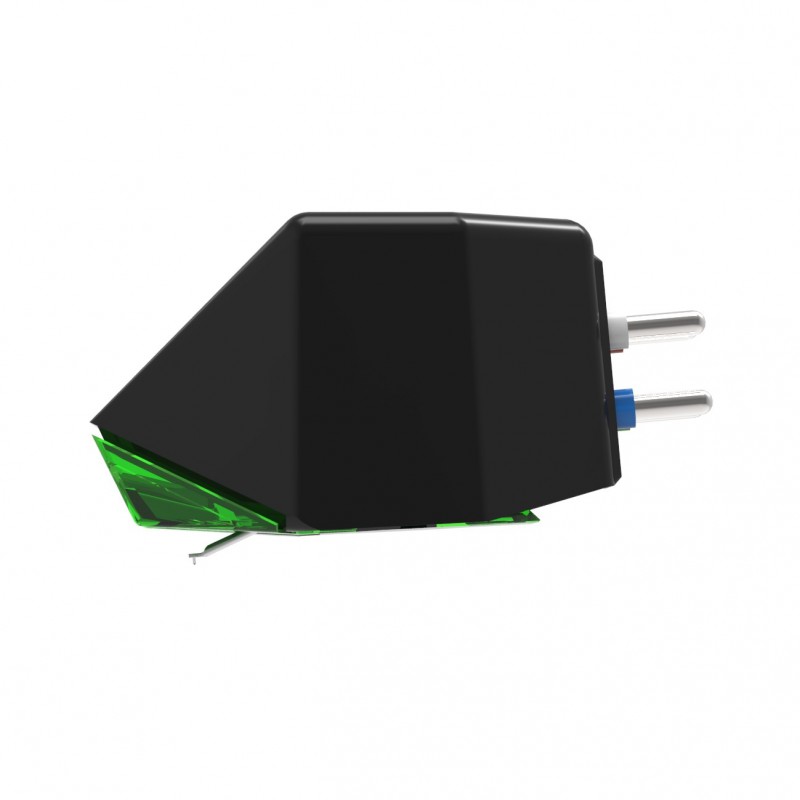

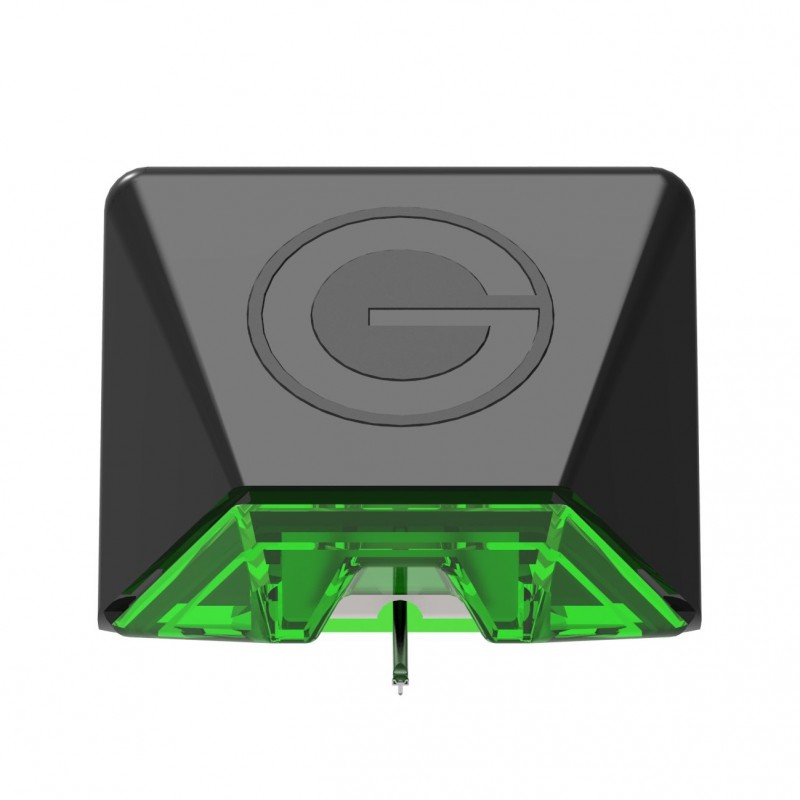

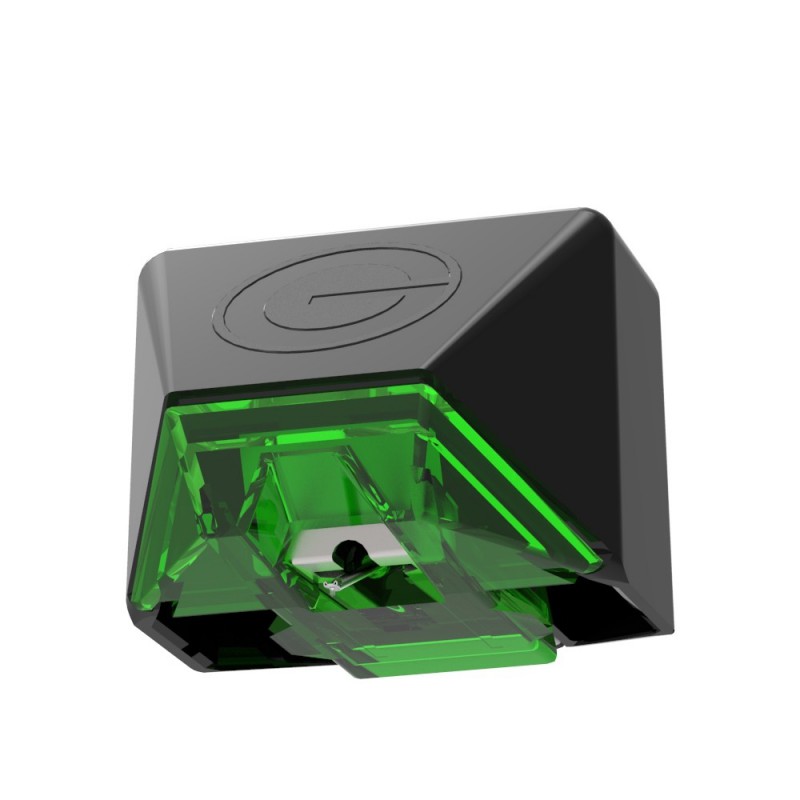

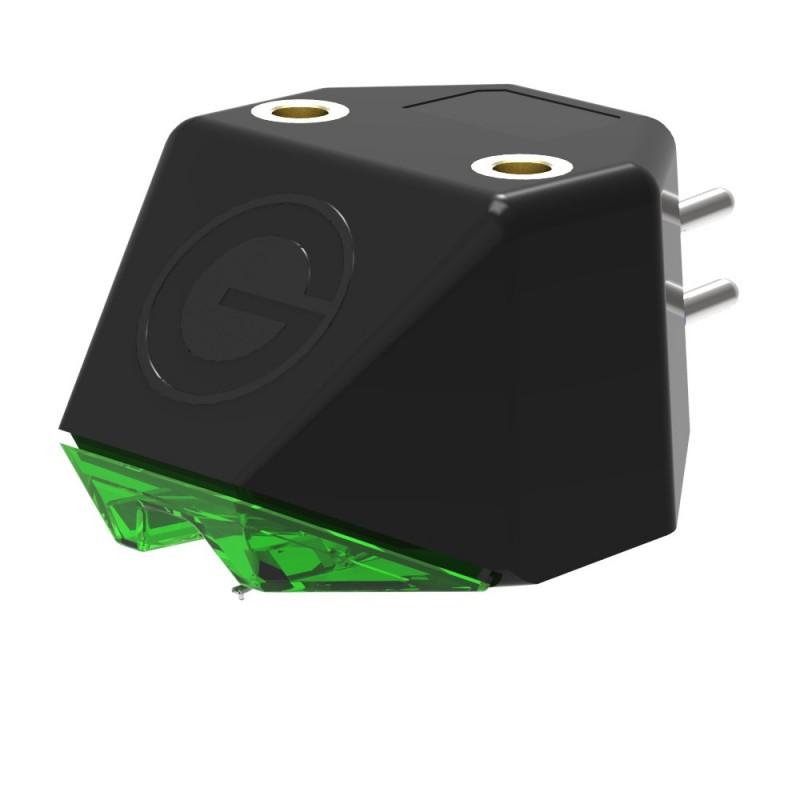

GOLDRING E2

Colour: Green
Cantilever: Aluminium
Stylus profile: Spherical
Stylus radius: 0.6 mil
Frequency range: 20 Hz – 20 kHz
Channel balance: 1.5 dB at 1 kHz
Channel separation: >20 dB at 1 kHz
Sensitivity: 3.5 mV (1 kHz @ 5 cm/sec)
Static compliance: 20 mm/N
Vertical tracking angle: 20°
Load resistance: 47 kΩ
Load capacitance: 100 – 200 pF
Internal inductance: 400 mH
Internal resistance: 410 Ω
Cartridge mass: 6.9 g
Fixing centres: 12.7 mm (0.5 in)
Playing weight: 1.5 g – 2.5 g (2.0 g recommended)
